Description

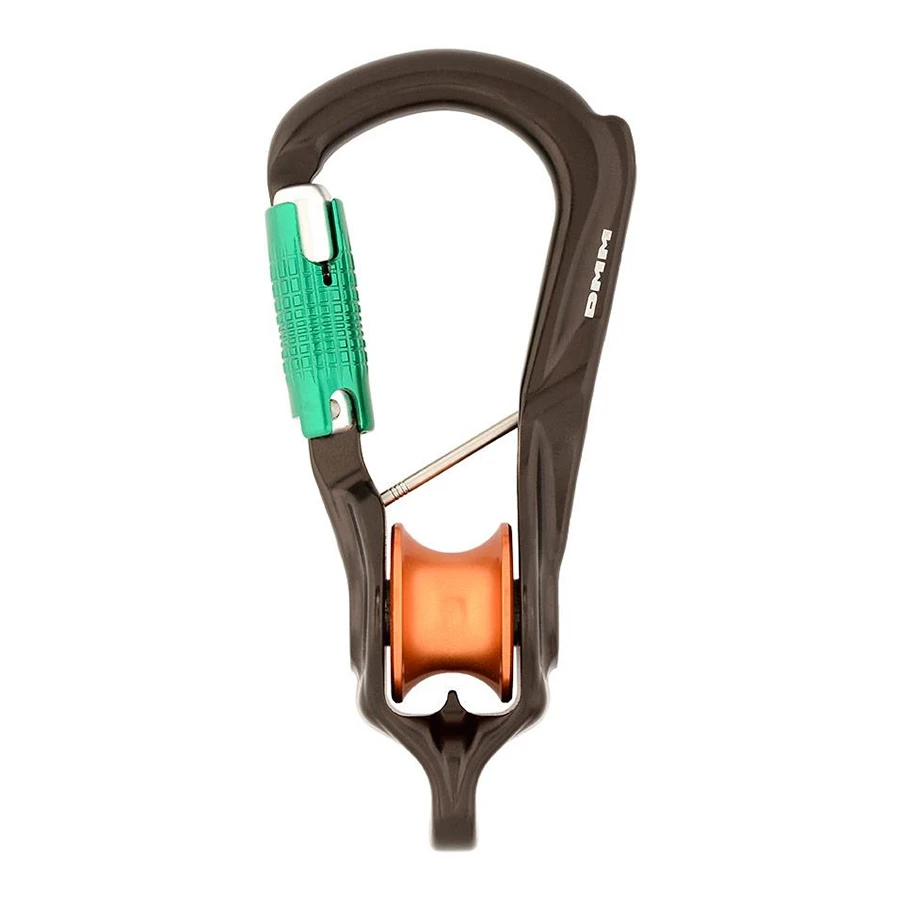

A connector with an integrated pulley sheave. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a connector attached to the becket any friction between the connector and rope is minimised.
- Large sheave tread diameter for large bend radius
- High efficiency roller bearings
- Full strength becket accepts most karabiners or direct textile connection
- Removable captive bar
- DMM iD optional
- Keylock nose for snag free operation
- Uniquely profiled spine to aid correct orientation
| Product Name | Product Code | Colour | MBS | WLL | Dimensions | Weight | Max. Rope Diameter | Conformance | |
|
Revolver Rig Locksafe |
 |
Matt grey |
25kN |
5kN |
76 x 160mm |
203g |
7-13mm |
EN12278:2007, EN362:2004 |
