FTC Micro Cylinder 2.0 Friction Device

Description

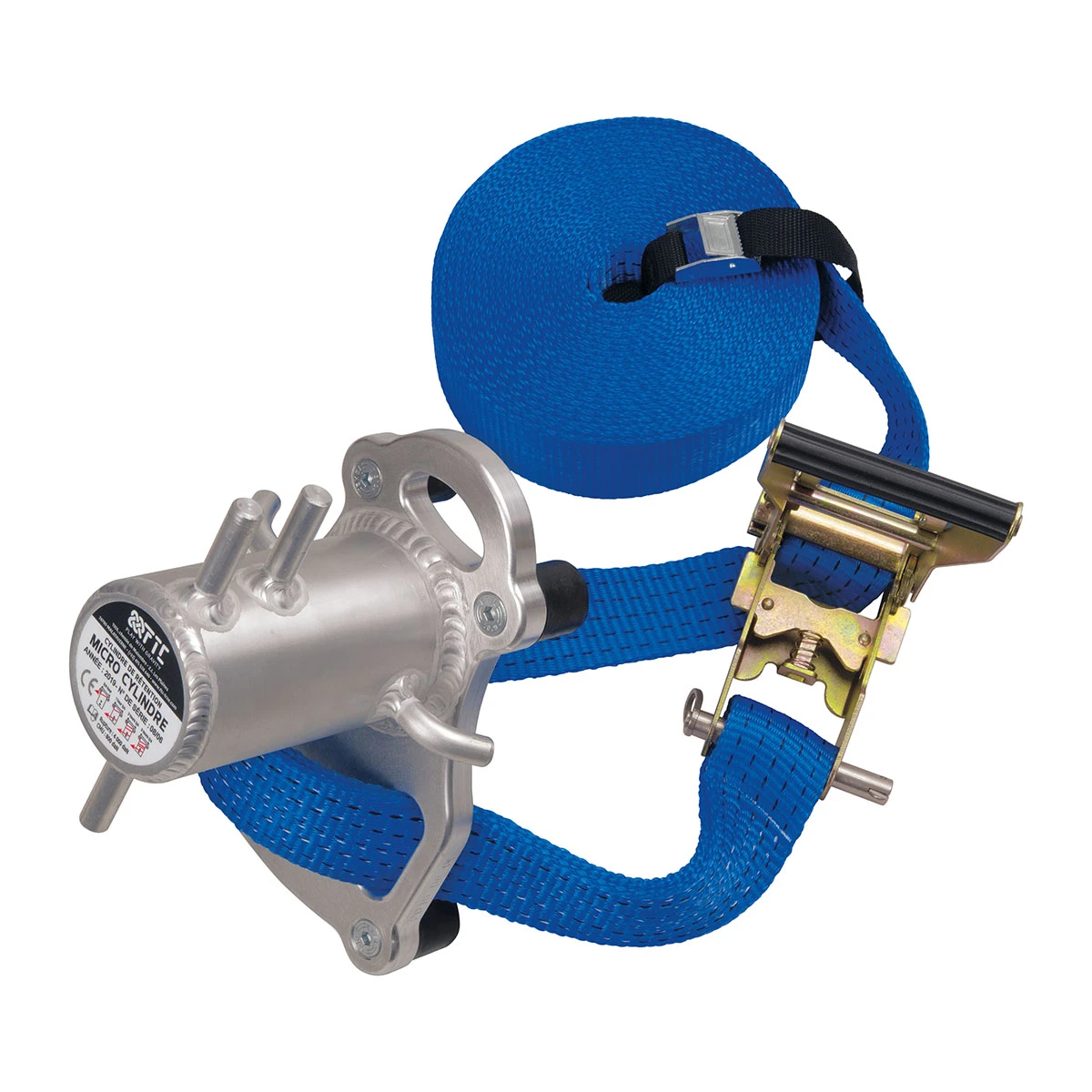

Made entirely of aluminium, it won’t heat up and won’t burn your ropes. It’s a clever addition to the friction devices already found in the FTC range. The upper ring enables reeving.

Two fairleads at the end of the cylinder prevent losing wraps and overlapping of the rope. A third fairlead under the cylinder enable a finer, more precise rigging. The symmetry of the device allows left or right location of the ground crew.

COMPLEMENTARY INFORMATION

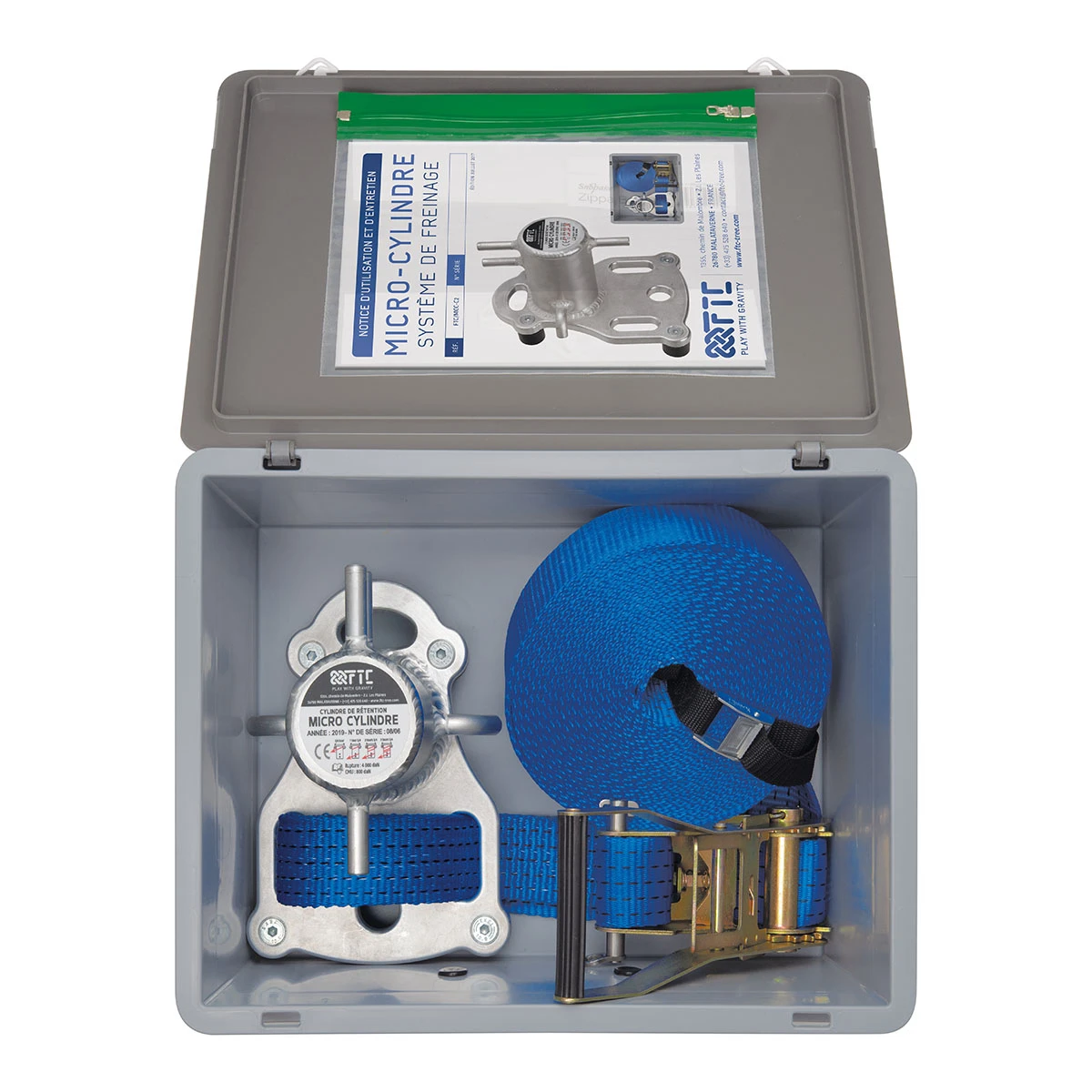

The MICRO-CYLINDRE 2.0 is delivered with a strap and in its own box for easy transport and storage.



Technical characteristics

Standard: 2006/42/CE Machinery Directive

Plate: 224 mm high, 163 mm wide
Cylinder Ø: 75 mm

Strap: 9 m (29.52 ft) (for trees up to 2 m (6.56 ft) in diameter), MBS 7,500 daN
Ratchet tensioner: MBS 6,000 daN

Box: 30 cm x 40 cm – 19.5 cm high (11.81 in x 15.74 in – 7.67 in high)

Maximum Ø of rope allowed: 14 mm (0.55 in)

MBS: 4,000 daN – WLL: 800 daN

Weight: 3.8 kg without the box (5.1 kg with) (134 oz without the box, 179 with)
