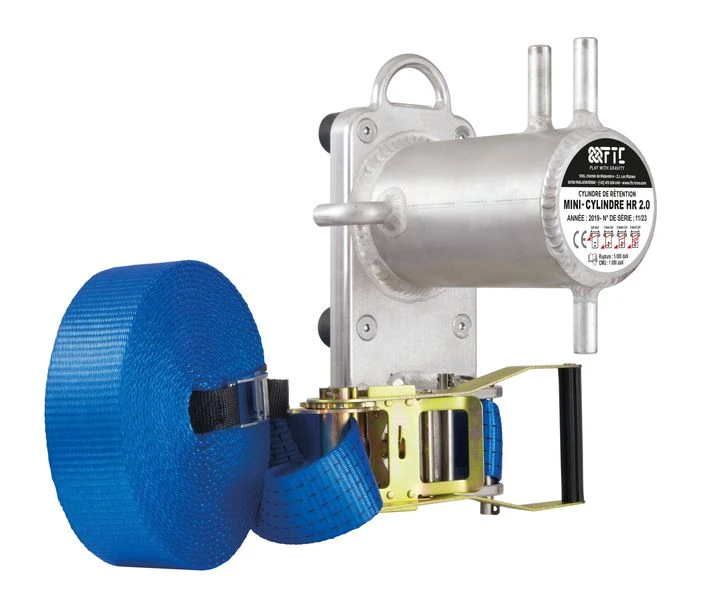

FTC Mini Cylinder HR 2.0 Friction Device

Description

Made entirely of aluminium, it won’t heat up and won’t burn your ropes. The round upper ring enables reeving, and two fairleads at the end of the cylinder prevents losing wraps and overlapping of the rope. A third fairlead under the cylinder enable a finer, more precise rigging.

6 rubber silent blocks protect the tree and ensure stability of the cylinder when loaded. The symmetry of the device allows left or right location of the ground crew.

COMPLEMENTARY INFORMATION

The MINI-CYLINDRE 2.0 is delivered with its strap and its own box for easy transport and storage.

Technical characteristics

Standard: CE 98/37 Machinery Directive

Plate: 340 mm (13.38 in) high (half ring included), 120 mm wide (4.72 in)
Cylinder Ø: 100 mm (3.93 in)

Strap length: 9 m – 29.52 ft (for trees up to 2 m (6.56 ft) in diameter), MBS 7,500 daN
Ratchet: MBS 6,000 daN

Box: 30 cm x 40 cm – 23.5 cm high (11.8 in x 15.74 in – 9.25 in high)

Maximum Ø of rope allowed: 16 mm (0.62 in)

Distortion: 5,000 daN – WLL: 1,000 daN

Weight: 5.9 kg without the box (7.5 kg with) (208 oz without the box, 264 oz with)
