Harken Wingman 4:1 Pulley System With Bag

Description

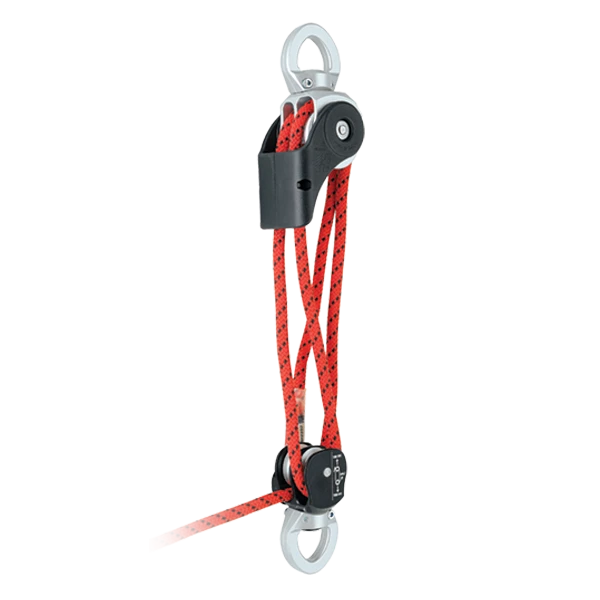

Wingman represents the next era in personal mechanical advantage systems. Its integral ratcheting sheave provides a progress capture feature that eliminates the need for prusiks and assures Wingman may be easily released under load.

Harken’s new WingMan applies new design and technology to achieve more from a compact personal mechanical advantage system. WingMan’s innovative design means it’s among the first offerings in this category that achieve internal progress capture mechanically within the unit rather than relying on prussiks to achieve that externally. WingMan combines a ratcheting sheave to stop the rope with a composite handle or wing the operator can open and close under load for a well-modulated ‘fine-tuned’ release. Under full load even with the sheaves pulled completely together, the system may be released quite easily, with full control using one hand on the wing and the other tending the line.

These revolutionary features combined with ball bearings within the sheaves and the maximizes efficiency for raising and lowering loads of up to 674lbs (3kN). The device has been submitted for NFPA G-rating and may be configured as a 4:1 or 5:1 purchase system. Wingman is ideal for pick-offs, adjustable directional, work positioning, and much more. The unmatched ease of use and the industry leading compact form factor makes Wingman a simple tool you will always want at your side.

Working load limit (kN) 3 kN

Slip Load 4kN / 900lb

Min Break Strength 36kN / 8090lb

50´ of 8 mm rope = 12´ maximum system length

The load limit specifications stated here are based on rope supplied by Harken. Use of the system with any other rope will affect the performance and void the warranty.

• Eccentric progress capture = no prusiks
• Can be released smoothly under full load with one hand
• 4:1 or 5:1 mechanical advantage (flip orientation to rig either way)
• Machined aluminum swivel connection points
• High efficiency ball bearing pulleys, internal ratchet, sheavesengineered to maximize rope holding
• Compact, lightweight form factor

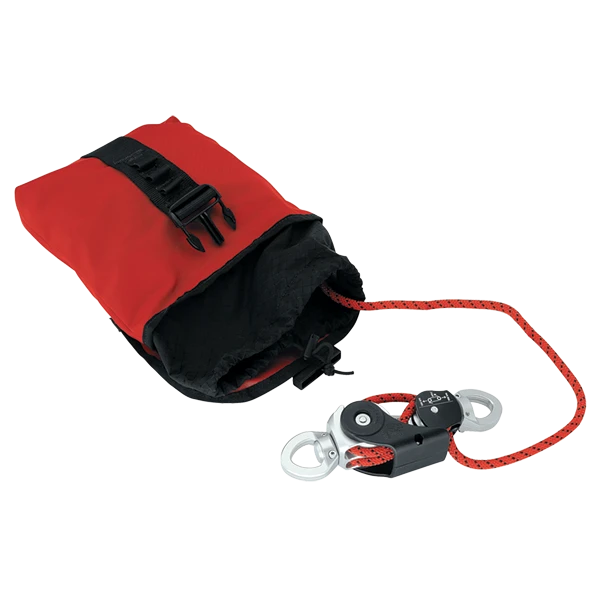

• Comes in an industrial-grade ballistic nylon carrying case with
  locking buckle. Case includes drawstring and drain grommets to
  separate unit and line for proper deployment and line drying.
