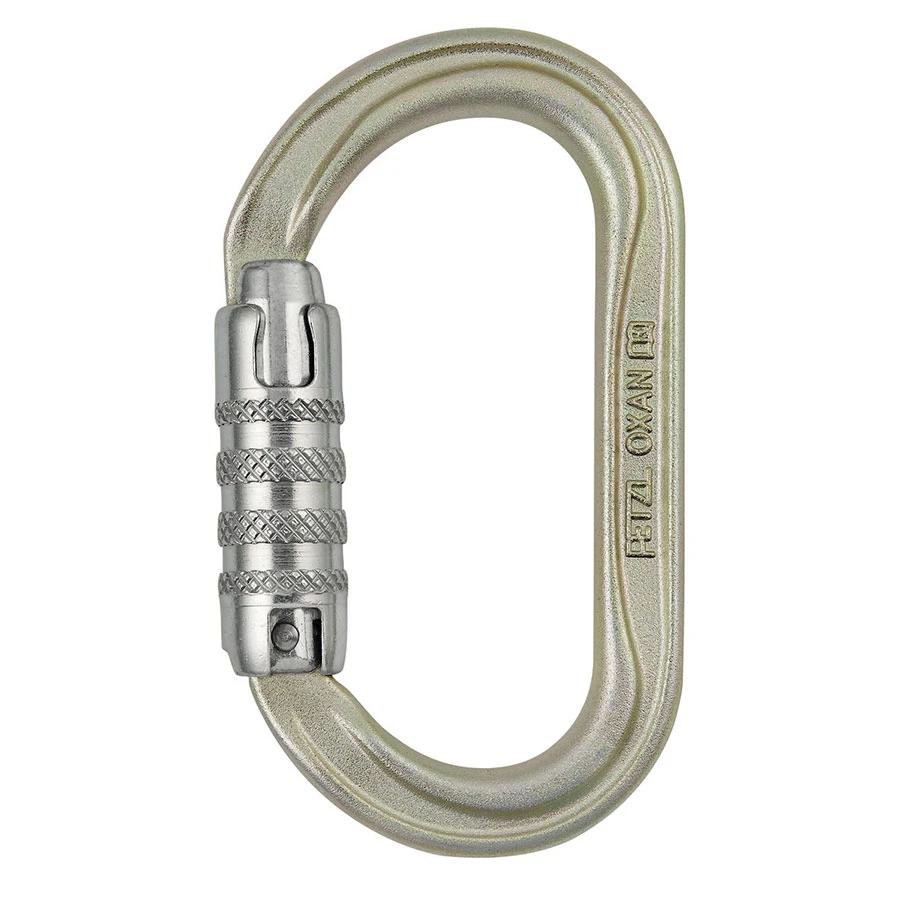

Petzl Oxan Triact Steel Carabiner (International Version)

OXAN is a high-strength steel carabiner designed for use in difficult environments. The oval, symmetrical shape allows optimal loading of the carabiner when setting up anchors or connecting to metal structures. It is available in two locking systems: automatic TRIACT-LOCK system or manual SCREW-LOCK system. OXAN TRIACT-LOCK is available in European or international versions. OXAN can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

• High-strength steel carabiner for use in harsh environments, particularly suitable for setting up anchors or for connecting to metal structures
• Oval symmetrical shape allows optimal positioning of the carabiner
• May be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to keep it integrated with the device, and to limit the risk of it flipping
• Easier handling:
  – fluid interior design limits the risk of having a catch point and facilitates rotation of the carabiner
  – Keylock system to avoid any involuntary snagging of the carabiner
• H cross-section:
  – ensures an optimal strength/weight ratio
  – protects markings from abrasion
• Two locking systems available:
  – TRIACT-LOCK: automatic locking with triple-action gate opening
  – SCREW-LOCK: the manual screw-lock with red band provides a visual warning when the carabiner is unlocked

• Warning: this tool holder is not PPE

References	M72A TL	M72A SL	M72A TLA	M72A TLN	M72A SLN
Locking system	TRIACT-LOCK	SCREW-LOCK	TRIACT-LOCK	TRIACT-LOCK	SCREW-LOCK
Certification(s)	CE EN 362, NFPA 1983 Technical Use, EAC	CE EN 362, NFPA 1983 Technical Use, EAC	CE EN 362, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12, EAC	CE EN 362, ANSI Z359.12, NFPA 1983 Technical Use, CSA Z259.12, EAC	CE EN 362, NFPA 1983 Technical Use, EAC
Color(s)	gold	gold	gold	black	black
Major axis strength	38 kN	38 kN	38 kN	38 kN	38 kN
Minor axis strength	16 kN	16 kN	16 kN	16 kN	16 kN
Open gate strength	15 kN	15 kN	15 kN	15 kN	15 kN
Gate opening	22 mm	22 mm	20 mm	20 mm	22 mm
Weight	195 g	185 g	230 g	230 g	185 g
Guarantee	3 years	3 years	3 years	3 years	3 years
Packing	1	1	1	1	1
