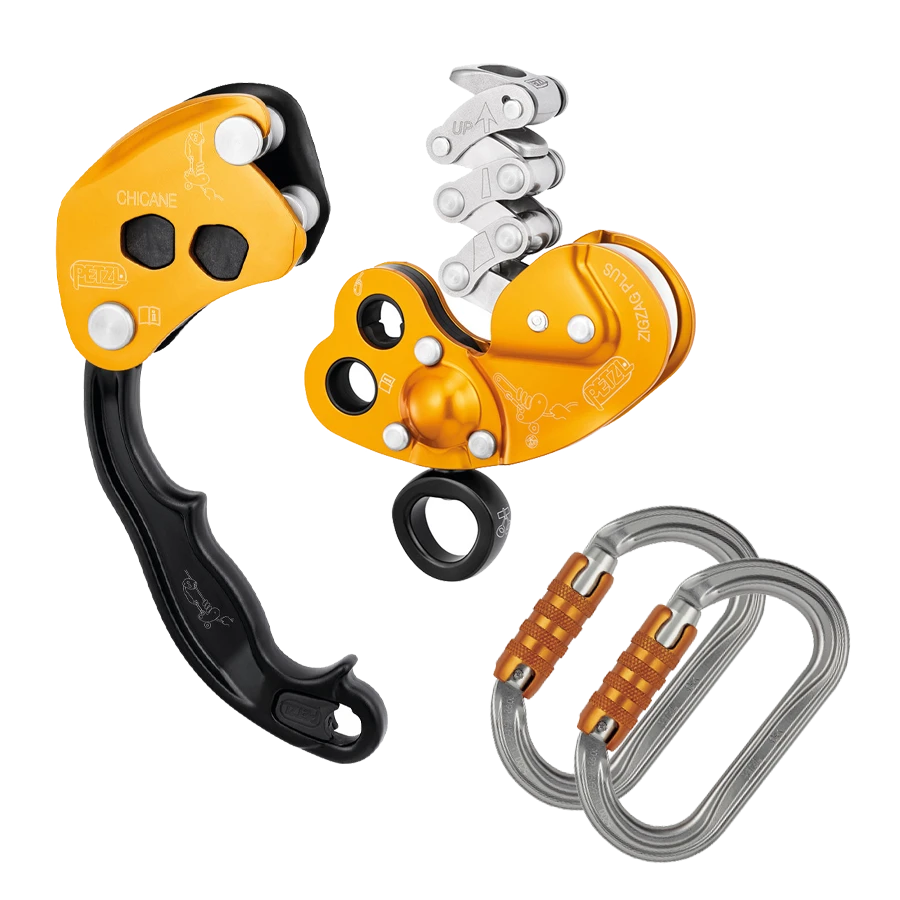

Petzl Ultimate Combo

Description

Mechanical Prusik with high-efficiency swivel, for tree care
The ZIGZAG PLUS mechanical Prusik allows the user to move around efficiently in a tree using classic Prusik pulley system technique. The friction chain provides precision and fluidity when moving around. The pulley is mounted on sealed ball bearings to allow the slack to be taken up easily. Can be used on either doubled ropes or a single rope, providing great versatility. The lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device.

• Intuitive to use:
  – technique identical to classic Prusik pulley system
  – the device locks automatically on the rope once the friction chain extends
• For efficient movement within the tree:
  – rope feed is smooth and precise thanks to the release lever, allowing the user great control over his/her movements. Adjusting the pressure on this lever controls the speed of movement
  – easy to take up slack, thanks to the pulley mounted on sealed ball bearings and the separated and curved side plates
  – lower attachment hole with high-efficiency swivel ensures stable and correct positioning of the mechanical Prusik and optimal rope glide through the device
• Versatile:
  – for use on either doubled ropes or a single rope, thanks to the CHICANE accessory, which offers more friction on the descent, and the KNEE ASCENT assemblies, which facilitate the ascent
  – upper attachment hole for the rope end when using a doubled rope or for the CHICANE auxiliary braking device when using a single rope. It has a flexible positioning ring that helps keep the connector oriented along its major axis
  – auxiliary attachment hole for adding a ZILLON lanyard or connecting a second system
• Durability:
  – steel construction for improved durability
  – separated and curved side plates for better wear resistance
• Rope compatibility: 11.5 to 13 mm diameter
• ZIGZAG PLUS allows the user to work in compliance with the ANSI Z133 standard

Specifications

• Material(s): aluminum, steel, nylon
• Weight: 425 g
• Rope compatibility: EN 1891 type A low stretch kernmantel ropes
• Working load limit: 140 kg
• Certification(s): CE

Chicane

Auxiliary brake for mechanical Prusik on single ropes, for tree care

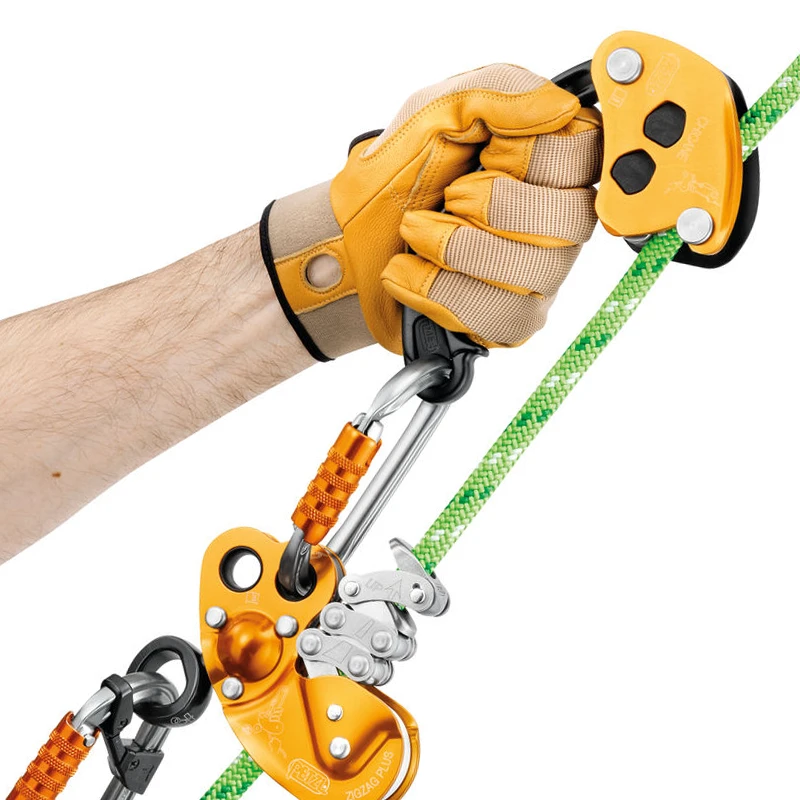

The CHICANE auxiliary braking device allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes. It provides continuous additional friction on descents. The excellent compatibility of the CHICANE and mechanical Prusik as an assembled unit ensures smooth rope glide through the brake during ascents. The ergonomic handle provides excellent grip and facilitates movement while limb walking. Thanks to the openable side plate, installation is quick and easy.

• Allows ZIGZAG and ZIGZAG PLUS mechanical Prusiks to be used on single ropes:
  – continuous additional braking action, thanks to the added friction of the two friction pins
  – used with an Am’D or OK connector (not included). The H-shaped cross-section of the connector, together with the positioning ring of the mechanical Prusik, make the CHICANE and mechanical Prusik a compatible unit that ensures smooth rope glide through the brake during ascents
  – ergonomic handle facilitates movement while limb walking
• Easy installation:
  – openable side plate for quick and easy installation on the rope
  – triple action unlocking limits rick of accidentally opening the side plate
  – connects on the upper hole of the mechanical Prusik
• Optimized durability, thanks to the two friction pins, available as spare parts
• CHICANE allows the user to work in compliance with the ANSI Z133 standard

Specifications

• Material(s): aluminum, steel, nylon
• Weight: 255 g
• Min. rope diameter: 11,5 mm
• Max. rope diameter: 13 mm
• Rope compatibility: EN 1891 type A low stretch kernmantel ropes
• Working load limit: 140 kg
• Certification(s): CE

Petzl OK

Lightweight oval carabiner
The lightweight OK carabiner is made of aluminum. It has an oval shape that allows optimal loading of devices with a wide cross-section, such as pulleys, rope clamps and mobile fall arresters. Its fluid interior design and Keylock system facilitate handling. It is available in three locking systems: automatic TRIACT-LOCK or BALL-LOCK system, or the manual SCREW-LOCK system. OK can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.

Description

Specifications

References	M33A TL	M33A BL	M33A SL	M33A TLN	M33A SLN
Weight	75 g	75 g	70 g	75 g	70 g
Locking system	TRIACT-LOCK	BALL-LOCK	SCREW-LOCK	TRIACT-LOCK	SCREW-LOCK
Color(s)	gray	gray	gray	black	black
Major axis strength	25 kN	25 kN	25 kN	25 kN	25 kN
Minor axis strength	8 kN	8 kN	8 kN	8 kN	8 kN
Open gate strength	7 kN	7 kN	7 kN	7 kN	7 kN
Gate opening	22 mm	23 mm	22 mm	22 mm	22 mm
Guarantee	3 years	3 years	3 years	3 years	3 years
Packing	1	1	1	1	1
